DVWA Walkthrough XVII - Cryptography

Cryptography

What’s this?

Cryptography vulnerabilities in web applications arise from weak or improperly implemented encryption, hashing, or key management, exposing sensitive data like passwords or sessions. PortSwigger Academy covers issues such as using outdated algorithms (e.g., MD5, DES), missing salts, or predictable randomness, which attackers exploit to decrypt or forge data. In DVWA, this module demonstrates flawed crypto practices like weak RC4 or ECB mode, vulnerable across security levels.

Poor cryptography leads to data breaches, credential theft, and session hijacking, enabling attackers to impersonate users or access confidential information. It results in regulatory fines and loss of trust when sensitive data is exposed in transit or at rest.

Objective

Each level has its own objective but the main goal of this module is to exploit weak cryptographic implementations.

Security: Low

Help
The thing to notice is the mention of encoding rather than encryption, that should give you a hint about the vulnerability here.

Check the source code here.

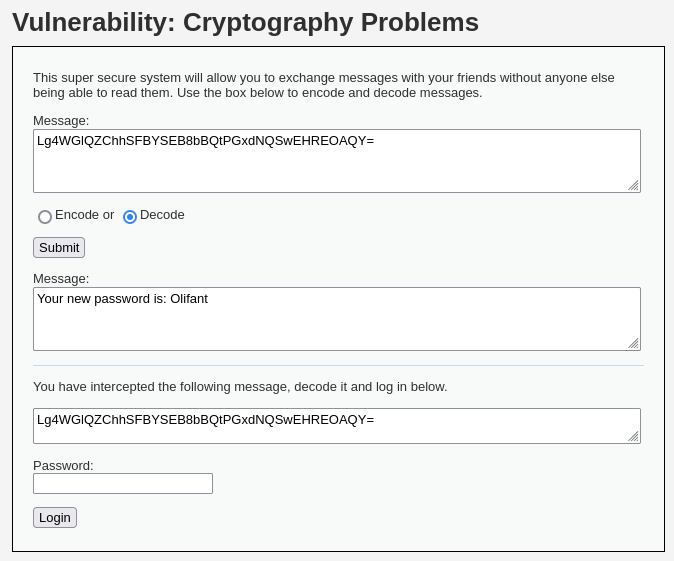

This is pretty straightforward: the message is encoded, not encrypted. Copy the intercepted message, decode it using the same page’s functionality, and you’ll get the password:

Security: Medium

Help
The tokens are encrypted using an Electronic Code Book based algorithm (AES-128-ECB). In this mode, the clear text is broken down into fixed sized blocks and each block is encrypted independently of the rest. This results in a cipher text that is made up from a number of individual blocks with no way to tie them together. Worse than this, any two blocks, from any two clear text inputs, are interchangeable as long as they have been encrypted with the same key. In our example, this means you can take blocks from the three different tokens to make your own token.

Check the source code here.

1. The application uses AES-128-ECB, so the ciphertext is divided into fixed blocks encrypted independently. The token splits into four parameters, each encrypted separately then concatenated: 32 hex chars (or 24 base64) per parameter.
2. We can divide the three ciphertexts:
   1. Sooty (admin), session expired:

      e287af752ed3f9601befd45726785bd9 <- user
      b85bb230876912bf3c66e50758b222d0 <- expiry
      837d1e6b16bfae07b776feb7afe57630 <- level
      5aec34b41499579d3fb6acc8dc92fd5f <- bio
      cea8743c3b2904de83944d6b19733cdb
      48dd16048ed89967c250ab7f00629dba


   2. Sweep (user), session expired:

      3061837c4f9debaf19d4539bfa0074c1 <- user
      b85bb230876912bf3c66e50758b222d0 <- expiry
      83f2d277d9e5fb9a951e74bee57c77a3 <- level
      caeb574f10f349ed839fbfd223903368 <- bio
      873580b2e3e494ace1e9e8035f0e7e07


   3. Soo (user), session valid:

      5fec0b1c993f46c8bad8a5c8d9bb9698 <- user
      174d4b2659239bbc50646e14a70becef <- expiry
      83f2d277d9e5fb9a951e74bee57c77a3 <- level
      c9acb1f268c06c5e760a9d728e081fab <- bio
      65e83b9f97e65cb7c7c4b8427bd44abc
      16daa00fd8cd0105c97449185be77ef5

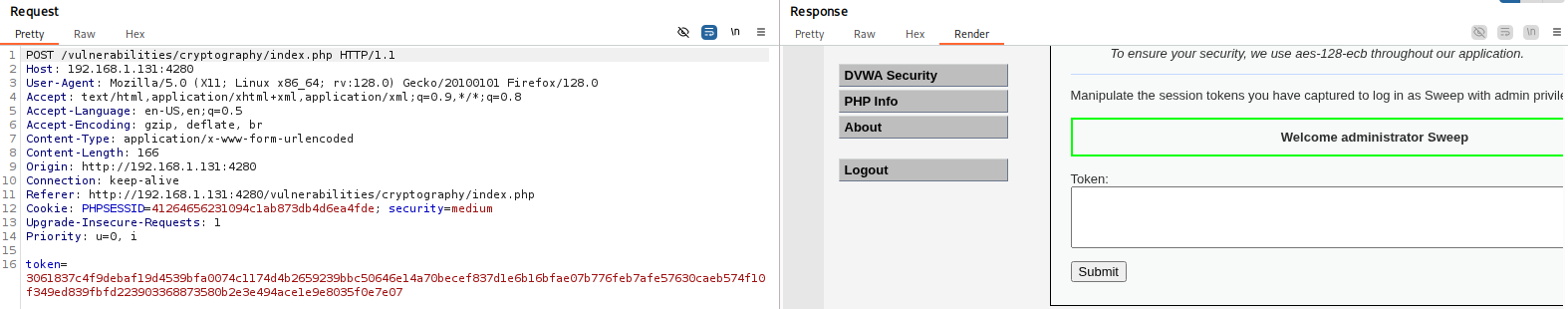

3. Now we can mix and build our token. For this recipe we need: Sweep user + Soo expiry + Sooty level + Sweep bio:

   3061837c4f9debaf19d4539bfa0074c1174d4b2659239bbc50646e14a70becef837d1e6b16bfae07b776feb7afe57630caeb574f10f349ed839fbfd223903368873580b2e3e494ace1e9e8035f0e7e07


Done!

Security: High

Help
The system is using AES-128-CBC which means it is vulnerable to a padding oracle attack.

Check the source code here.

I highly recommend going through Cryptocat’s walkthrough video as well as Cryptopals’ post for a deeper understanding of the attack (see References).

1. Base64-decode the iv (reveals 1234567812345678) from the captured token.
2. We can use the DVWA oracle_attack.php script. You can found in the help section or here. We will also need token_library_high.php.

   php oracle_attack.php --iv="MTIzNDU2NzgxMjM0NTY3OA==" --token="PhQwGVA3q+T2mT+L3Pe5Vg==" --url="http://192.168.1.131:4280/vulnerabilities/cryptography/source/check_token_high.php"

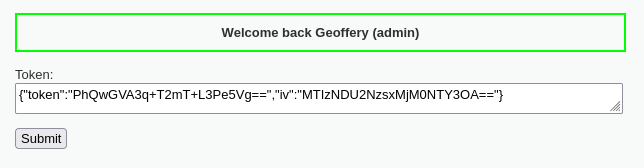

3. After executing the script, we get a new token as admin Geoffrey:

   Response from server:
   array(3) {
     ["status"]=>
     int(200)
     ["user"]=>
     string(8) "Geoffery"
     ["level"]=>
     string(5) "admin"
   }
   Hack success!
   The new token is:
   {"token":"PhQwGVA3q+T2mT+L3Pe5Vg==","iv":"MTIzNDU2NzsxMjM0NTY3OA=="}


   The iv is flipped to 1234567;12345678. Admin access obtained!

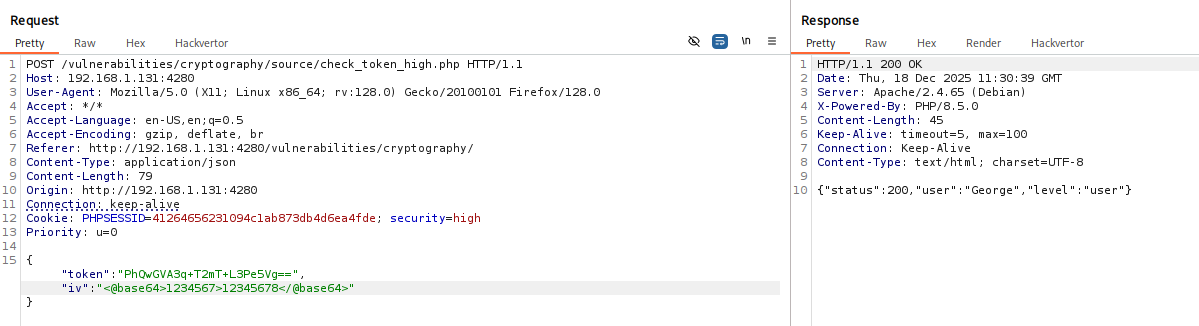

4. We can play with the modified character and obtain other users in the application: User George

References

• How many numbers in the encryption key
• Cryptocat’s walkthrough video
• Cryptopals: Exploiting CBC Padding Oracles
